Air Hose Reels S-series

  • Spring Driven air hose reel.
  • Reliability and Results. Triens new redesign standard series.
  • Redesigned bracket arms for added safety and support.
Air Hose Reel
Product

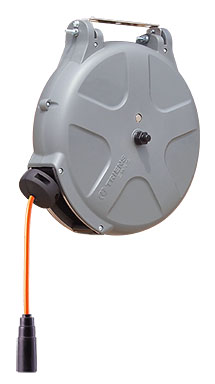

S-series Air Hose Reel  5/16" X 50.0ft
Model
SHMW-350U
Features
  • Redesigned inner unit made it possible to roll up more hose and make the cover size smaller.
  • compact and light weight, ideal for space restricted installations.
  • Triens Signature series poly urethane braid hose.
  • Wall or ceiling mount.
  • Reels come complete with urethane braid inlet hose, ball stop and complete mounting hardware.
  • Redesigned steel ratchet and gears for long life.
  • Solid brass axle.
  • Easy couplings – makes replacing hose fast and easy.
  • TRIENS’ quick repair outlet fitting.
  • Outlet fitting cover included.
  • Hose with Coupling
  • Stainless Protector
Air Hose Reel
Product

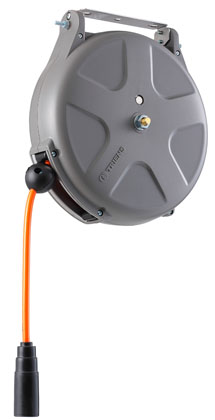

S-series Air Hose Reel  1/4" X 35.0ft
Model
SHS-235A U
Features
  • Compact and light weight, ideal for space restricted installations.
  • TRIENS Signeture series poly urethane braid hose.
  • Wall or ceiling mount.
  • Reels come complete with urethane braid inlet hose, ball stop and complete mounting hardware.
  • Redesigned steel ratchet and gears for long life.
  • Solid brass axel.
  • Easy coupling - makes replacing hose fast and easy.
  • TRIENS' quick repair outlet fitting.
  • Outlet fitting cover included.
  • Hose with Coupling
  • Stainless Protector
Air Hose Reel
Product

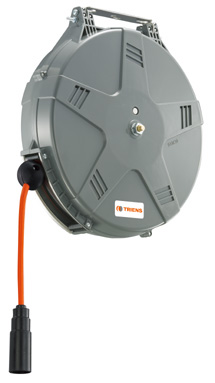

S-series Air Hose Reel  5/16" X 50.0ft
Model
SHR-350 U
Features
  • Perfect where longer hose length is required.
  • TRIENS Signeture series poly urethane braid hose.
  • Wall or ceiling mount.
  • Reels come complete with urethane braid inlet hose, ball stop and complete mounting hardware.
  • Redesigned steel ratchet and gears for long life.
  • Solid brass axel.
  • Easy coupling - makes replacing hose fast and easy.
  • TRIENS' quick repair outlet fitting.
  • Outlet fitting cover included.
  • 2 year warranty.
  • Hose with Coupling
  • Stainless Protector

Specifications

(Small)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
SHS-235A U PU NPT1/4"M 1/4"
[6.5]
35.0 203 NPT1/4"M 2.6 12-3/8"
[314]
11-7/16"
[290]
6"
[152]
7.7
[3.5]


(Mid small)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
SHMW-350U PU NPT1/4"M 5/16"
[8.0]
50.0 203 NPT3/8"M 3.2 14 13/32"
[366]
13 1/4"
[336.6]
6 1/4"
[159]
9.5
[4.5]


(Medium)
Model Outlet Hose Maximum
Working
Pressure
PSI
Inlet Hose Dimensions
Inch [mm]
Weight
lb [kg]
Hose Outlet I.D.
Inch [mm]
Length
ft
Inlet Length
ft
A B C
SHR-350 U PU NPT1/4"M 5/16"
[8.0]
50.0 203 NPT3/8"M 3.2 16-1/16"
[408]
15-1/8"
[384]
6-7/8"
[173]
15.0
[6.8]



Installation Positioning

Dimensions

Installation Positioning Dimensions

No need to take apart

Improved durability

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
